FLEXI F65/1000/1500/2000機床技術參數
|
|
DESCRIPTION - 詳述
|
UNIT-單位
|
Value-數值
|
|
CAPACITY - 容量
|
|
|
|
Centre - 中心高
|
mm
|
160
|
|
Admit between Centre - 頂尖距
|
mm
|
650/1000/1500/2000
|
|
Grinding Length - 磨削長度
|
mm
|
650/1000/1500/2000
|
|
根據配置磨削長度會有變化
|
|
Maximum weigth Between Centre-可加工工件重量
|
kg
|
80
|
|
|
|
|
|
WHEEL SLIDE X-AXIS X軸
|
|
|
|
Slide Stroke - 行程
|
mm
|
300
|
|
Rapid feed Rate - 快速進給速率
|
m/min
|
10
|
|
Minimum increment / pulse - 最小增量脈沖
|
mm
|
0.0001
|
|
Feed Servomotor - 伺服進給
|
Nm
|
12
|
|
Repeatability of X- axis - 重復精度
|
mm
|
0.002
|
|
Positioning Accuracy (with linear Scale)定位精度
|
mm
|
0.004
|
|
LONGITUDENAL SLIDE - Z-AXIS -Z軸
|
|
|
|
Table Stroke - 行程
|
mm
|
840
|
|
Rapid Feed Rate - 快速進給倍率
|
m/min
|
10
|
|
Minimum increment / pulse - 最小增量脈沖
|
mm
|
0.0001
|
|
Feed Servomotor - 伺服進給
|
Nm
|
12
|
|
Repeatability of Z- axis - 重復精度
|
mm
|
0.004
|
|
Positioning Accuracy(without linear Scale)定位精度
|
mm
|
0.008
|
|

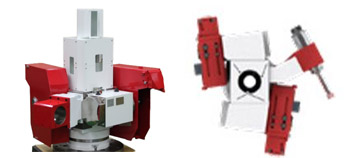

WHEEL HEAD - 砂輪頭
|
|
|
|
For OD & Face Grinding (with Cubitron 2/3/4)
|
|
|
|
New Grinding Wheel Dimension 新砂輪尺寸值
|
mm
|
500 x 100 x 203.3
|
|
Finish Grinding Wheel Dimension 須更換砂輪尺寸值
|
mm
|
400 x 100 x 203.3
|
|
Spindle motor power (built in type) 1
|
kw
|
11
|
|
Peripheral ( surface ) speed 線速度
|
m/sec.
|
45
|
|
for Groove Grinding (with CBN) 槽磨削
|
|
|
|
Grinding Wheel Dimension (for groove)砂輪尺寸值
|
mm
|
450 x 32 x 127
|
|
Spindle motor power (built in type) 1主軸電機功率
|
kw
|
7.5
|
|
Peripheral ( surface ) speed 線速度
|
m/sec.
|
80
|
|
Swivelling Range Automatic B-xis -B軸回轉范圍
|
degree
|
-15 to 180
|
|
B- Axis Resolution B軸分辨度
|
degree
|
5
|
|
B- Axis Positioning Repeatability B軸定位精度
|
Arc Seconds
|
±5
|
|
WORK HEAD - 工作頭
|
|
|
Centre taper - 中心錐度
|
No.
|
MT5
|
|
Spindle speed ( infinitely variable )-主軸速度（無級變速）
|
rpm
|
30-600
|
|
Spindle motor power -主軸電機功率
|
kw
|
1.5
|
|
Motor torque -電機扭矩
|
Nm
|
12
|
|
|
|
|
|
TAILSTOCK - 尾座
|
|
|
|
Centre taper -頂尖錐度
|
No.
|
MT5
|
|
Quill diameter - 尾座套筒直徑
|
mm
|
65
|
|
Quill travel - 尾座行程
|
mm
|
60
|
|
Micro Taper Correction 錐度微調量
|
mm
|
± 0.040
|
|
|
|
|
|
DRESSING UNITS 修整（修砂）器
|
|
|
|
For OD Grinding Wheel 外徑磨削砂輪用
|
|
安裝在主軸頭上的刃式（斧式）修整器
|
|
|
|
|
|
HYDRAULIC UNIT -液壓
|
|
|
|
Tank capacity - 油箱容量
|
ltr
|
40
|
|
Motor power - 電機功率
|
kw
|
0.75
|
|
|
|
|
|
GENERAL 整體容量
|
|
|
|
Operation voltage - 操作電壓
|
Volts
|
3相交流380
|
|
Floor space LxB (without coolant unit)占地面積（不包含冷卻箱）
|
mm
|
長3100 x 3000寬
|
|
Machine weight(Approximate) 機床重量（近似值）
|
kg
|
7000/8000/9000/11000
|
